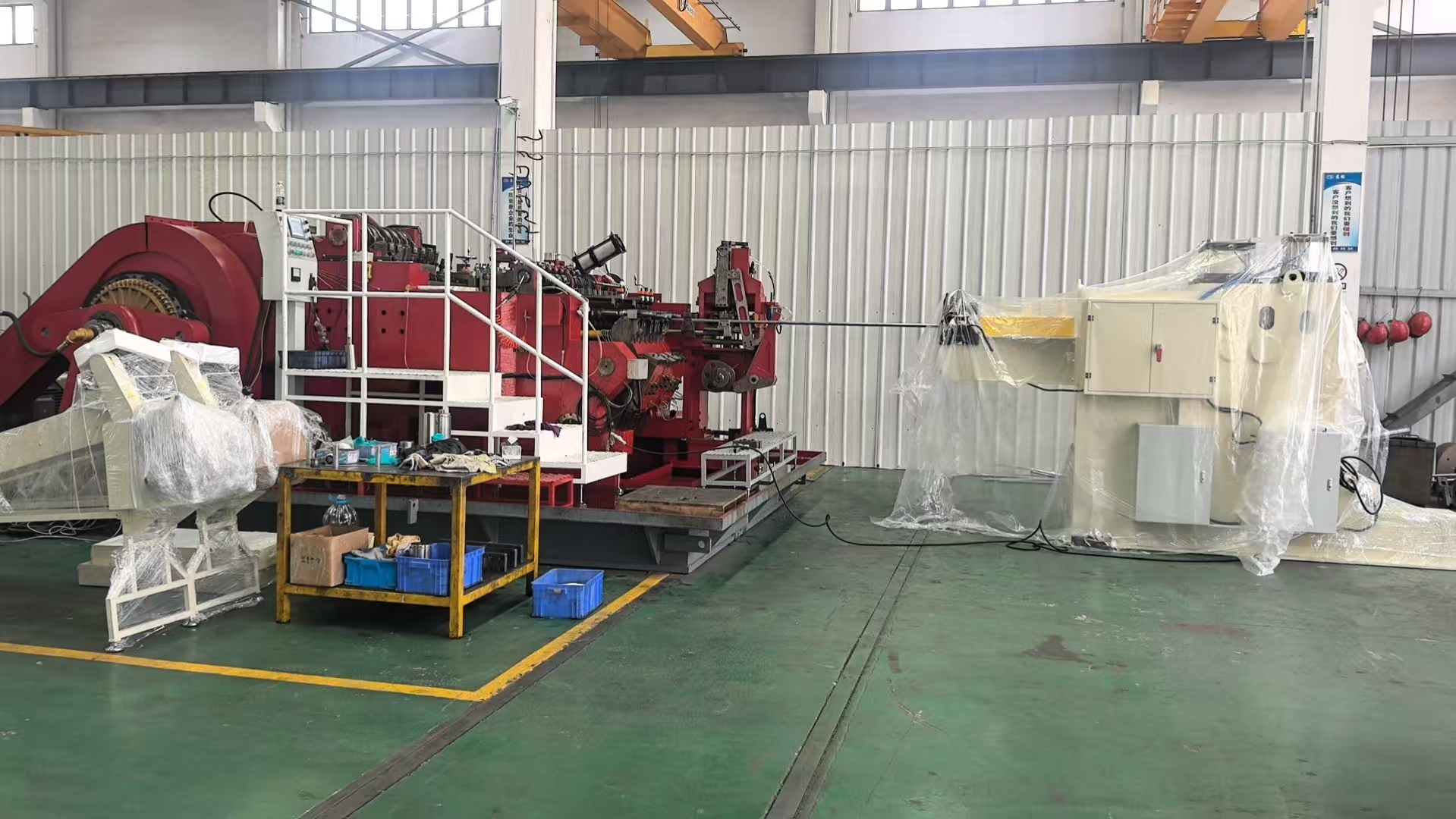

4 Die 4 Blow High Capacity Multi Station Cold Forming Machine Make M5-M7

Share to:

A 4 Die 4 Blow High Capacity Multi Station Cold Forming Machine designed for producing parts in the M5-M7 size range is a sophisticated piece of manufacturing equipment, engineered to deliver high-volume production with exceptional precision and efficiency.

库存： 0

Inquire

Add to Basket

Product Description

Specification

Model	Unit	K-404	K-405	KD-406	KD-408
Forging station	No.	4	4	4	4
Forging force	Kgf	22000	32000	50000	70000
Max.cut-off dia	mm	5	7	8	10
Max.cut-off length	mm	45	90	100	140
Production speed	pcs/min	280	260	220	220
Master die ejection stroke	mm	40	70	90	130
Punch die ejection stroke	mm	20	20	30	40
Main sliding table stroke	mm	100	120	130	160
Overall dims. Of main die	mm	35*60	50*90	50*100	60*130
Overall dims. Of punch die	mm	31*85	38*85	40*100	45*115
Overall dims. Of cut of die	mm	18*25	28*35	28*40	40*60
Die pitch	mm	50	55	60	80
Applicable bolt dia	mm	1-4	2-5	3-6	4-8
Shank length of blank	mm	10-40	10-65	10-85	10-115
Max flange dia	mm	9.5	16	17	19
Main engine motor	KW	5.5	18.5	22	30
Machine weight	Kgs	3500	6500	8000	14000
Machine dimension	mm	260018001400	350020002000	350020002000	353023502090

Model	Unit	KD-410	KD-413	KD-416	KD-420	KD-425
Forging station	No.	4	4	4	4	4
Forging force	Kgf	105000	140000	210000	350000	480000
Max.cut-off dia	mm	12	16	18	23	30
Max.cut-off length	mm	165	220	195	240	275
Production speed	pcs/min	200	120	100	95	90
Master die ejection stroke	mm	145	200	178	40	350
Punch die ejection stroke	mm	40	60	40	46	46
Main sliding table stroke	mm	195	270	260	346	346
Overall dims. Of main die	mm	75-135	86*190	100*200	125*240	150*250
Overall dims. Of punch die	mm	55*125	60*130	78*185	90*215	120*270
Overall dims. Of cut of die	mm	45*60	55*75	60*90	75*120	80*130
Die pitch	mm	94	110	120	140	160
Applicable bolt dia	mm	6-10	8-16	10-18	12-24	14-27
Shank length of blank	mm	10-115	20-180	20-165	20-200	20-240
Max flange dia	mm	23	28	30	36	38
Main engine motor	KW	37	55	55	75	132
Machine weight	Kgs	21000	31000	45000	65000	90000
Machine dimension	mm	410025002200	1050039503050	570032002600	360030003000	720043003200

Application

This machine is particularly suited for applications where high performance and reliability are paramount. Industries such as automotive, aerospace, and construction rely heavily on high-quality fasteners and components that can withstand rigorous conditions. By using a 4 Die 4 Blow High Capacity Multi Station Cold Forming Machine, manufacturers can ensure they meet stringent industry standards while maximizing production efficiency.

A 4 Die 4 Blow High Capacity Multi Station Cold Forming Machine for M5-M7 parts offers an unmatched combination of speed, precision, and versatility. It enables manufacturers to produce large volumes of high-quality components efficiently, making it an essential asset in modern manufacturing environments.

Enhanced Strength Properities

The cold forming process utilized by this machine improves the material's strength through strain hardening, leading to more robust and longer-lasting components when compared to those manufactured using conventional machining techniques.
