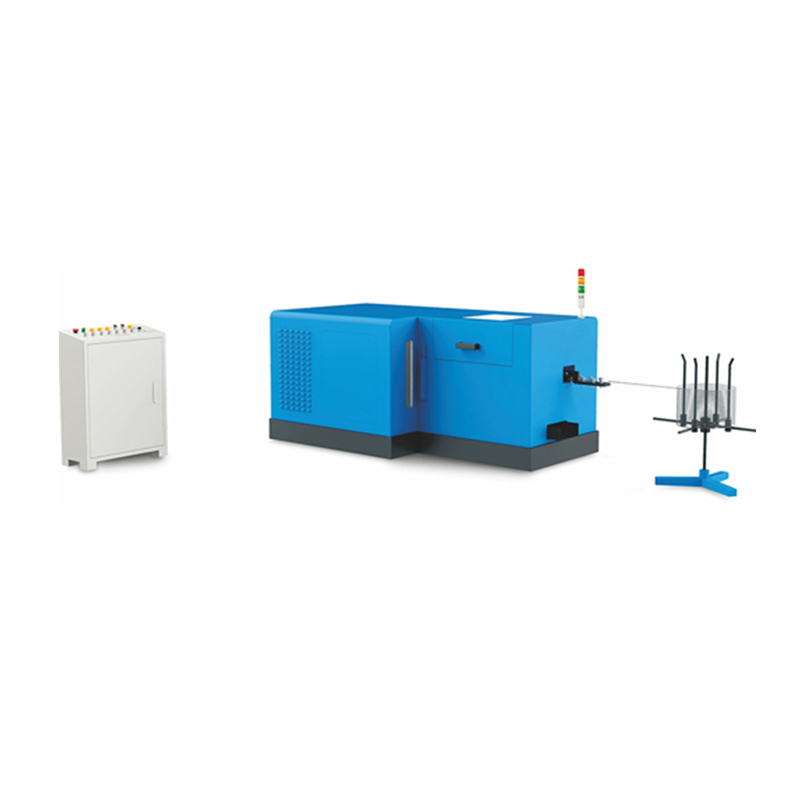

2-Die 2-Blow Multi Station Warm Heading Machine Make M1-M3
2-Die 2-Blow Multi Station Warm Heading Machine Make M1-M3
2-Die 2-Blow Multi Station Warm Heading Machine Make M1-M3
2-Die 2-Blow Multi Station Warm Heading Machine Make M1-M3
2-Die 2-Blow Multi Station Warm Heading Machine Make M1-M3
2-Die 2-Blow Multi Station Warm Heading Machine Make M1-M3
2-Die 2-Blow Multi Station Warm Heading Machine Make M1-M3
2-Die 2-Blow Multi Station Warm Heading Machine Make M1-M3
2-Die 2-Blow Multi Station Warm Heading Machine Make M1-M3
2-Die 2-Blow Multi Station Warm Heading Machine Make M1-M3

Share to:

The 2-Die 2-Blow Multi Station Warm Heading Machine operates using a warm heading process, which involves heating the material to a moderate temperature (below its recrystallization point) to improve formability while maintaining material strength.
库存： 0
Inquire
Add to Basket

Specification


ModelUnitK-203K-204K-205K-206
Forging stationNo.2222
Forging forceKgf9000120002200028000
Max.cut-off diamm345.57.5
Max.cut-off lengthmm35357080
Production speedpcs/min280280280260
Master die ejection strokemm30306580
Punch die ejection strokemm10101515
Main sliding table strokemm8080110120
Overall dims. Of main diemm35*3035*3035*6050*90
Overall dims. Of punch diemm22*4022*4031*8038*85
Overall dims. Of cut of diemm18*2218*2218*2528*35
Die pitchmm50505555
Applicable bolt diamm1-31-32-53-6
Shank length of blankmm10-3010-3010-6510-80
Max flange diamm7810.517
Main engine motorKW3.753.755.518.5
Machine weightKgs2000200032006500
Machine dimensionmm1500*1200*10001500*1200*10002600*1200*11502750*1200*1150


Key Features


  1. Production Range

    • Designed specifically for producing small fasteners with diameters ranging from M1 to M3.

    • Ideal for manufacturers focusing on high-precision, small-sized components.

  2. 2-Die 2-Blow System

    • The "2-Die 2-Blow" system means that each part undergoes two forming stages across two dies.

    • This sequential process ensures precise shaping and dimensional accuracy, even for intricate designs.

    • The two blows allow for more complex geometries compared to single-blow systems.


Warm Heading Process


  • Operates at elevated temperatures (typically between 200°C to 500°C), improving material ductility and reducing forming forces.

  • Warm heading minimizes cracking and enhances surface finish compared to cold forming for certain materials.

  • Suitable for materials like stainless steel, alloy steel, and other metals that may be challenging to cold form.


Applications

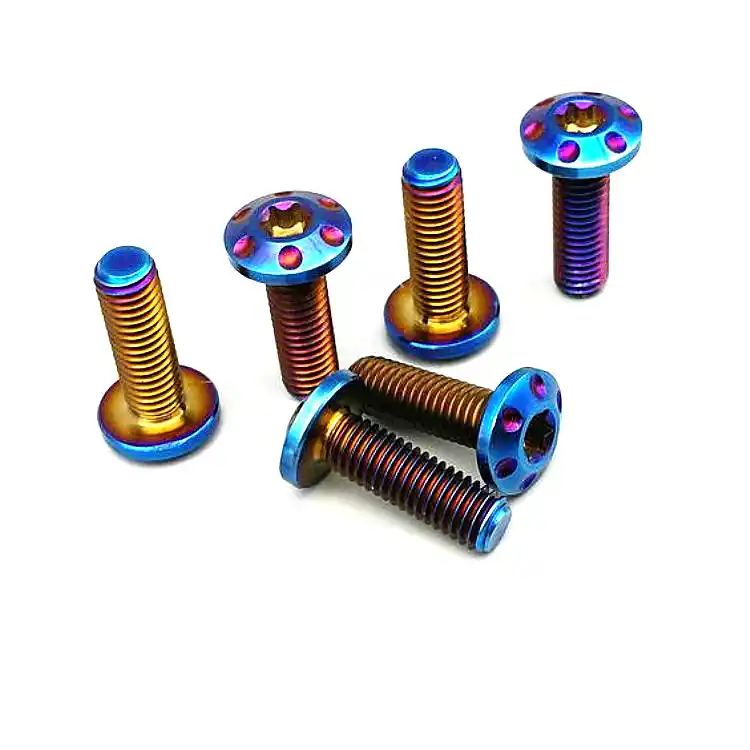

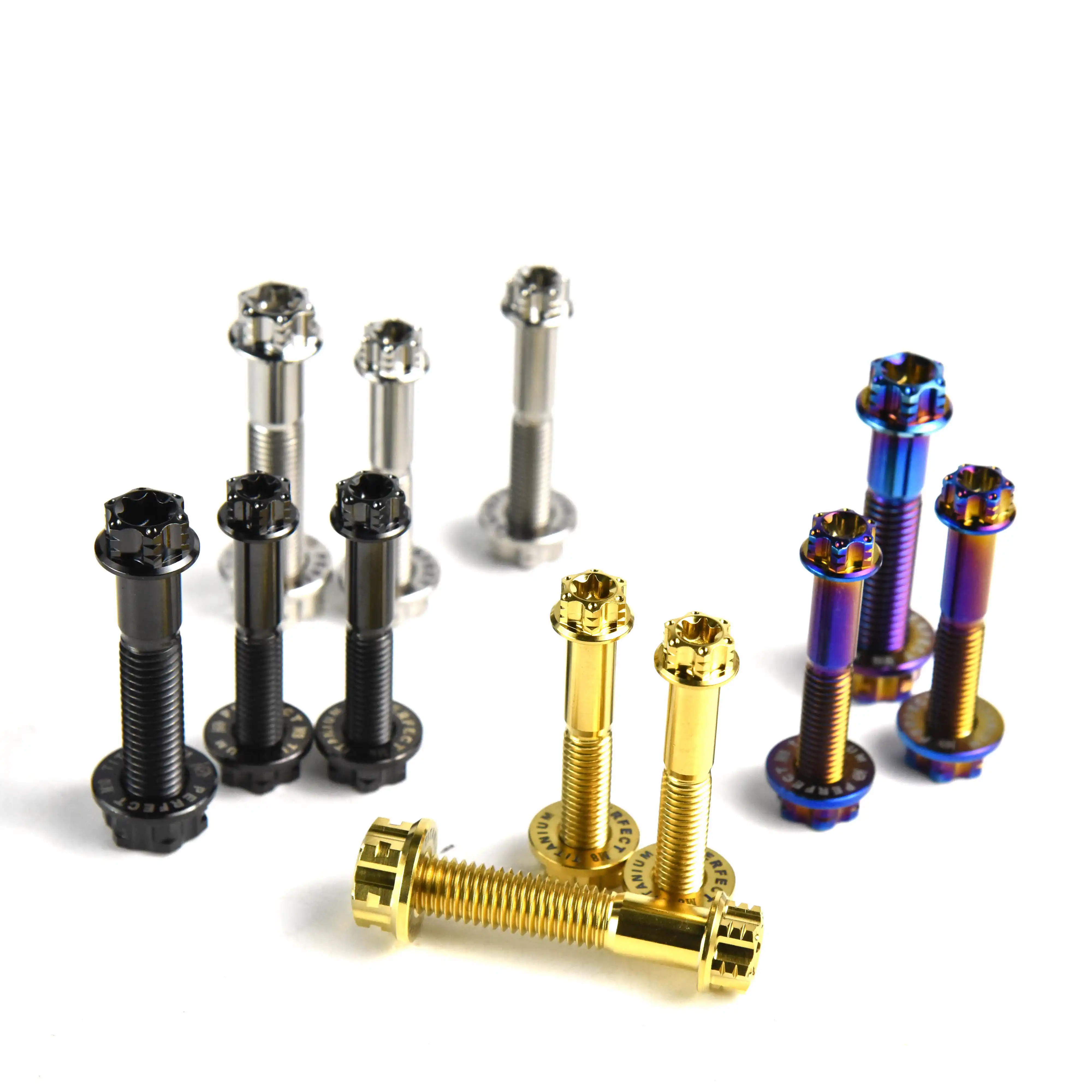

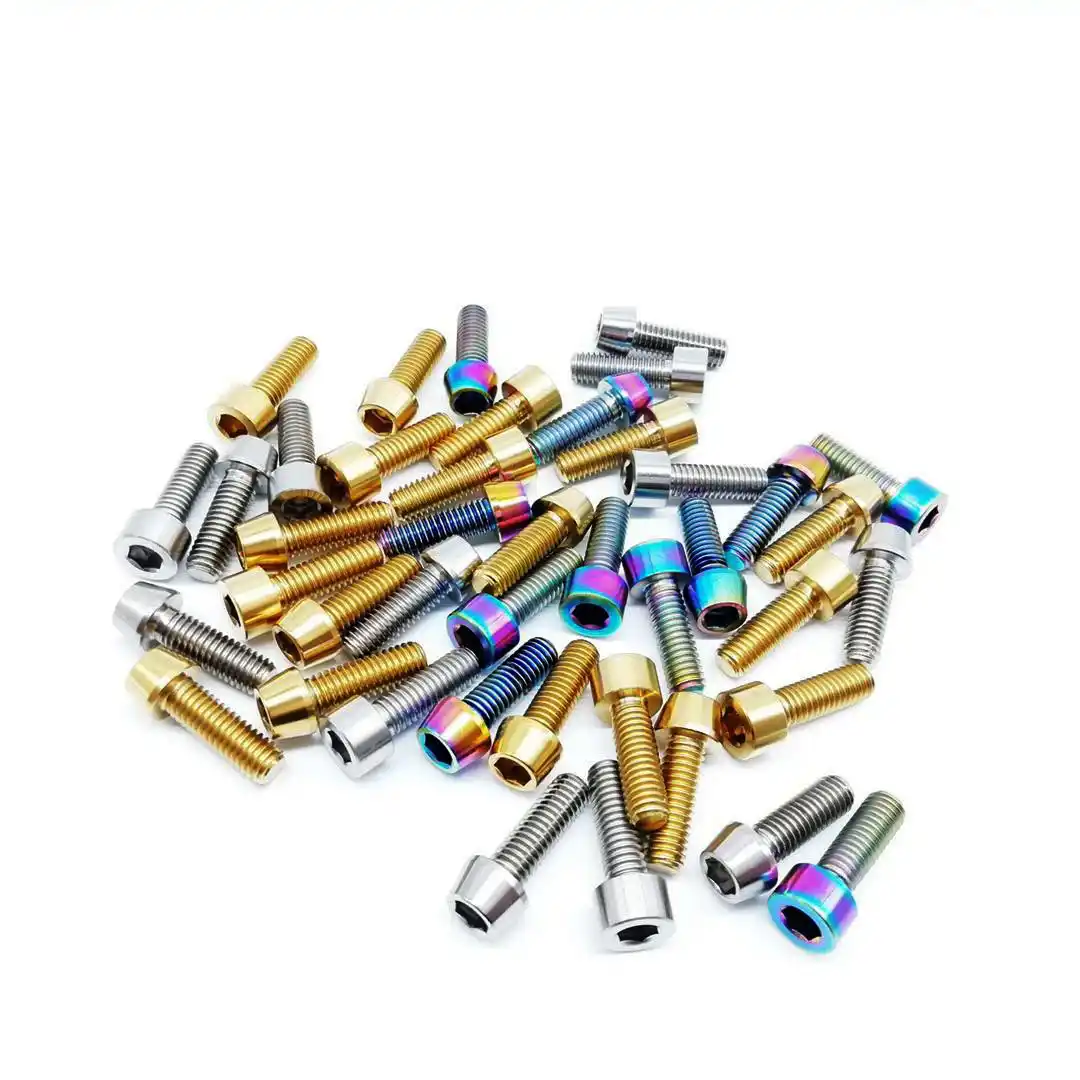

  • Small Fasteners: Ideal for producing screws, bolts, pins, and rivets in the M1 to M3 size range.

  • Precision Components: Suitable for industries requiring high-precision parts, such as automotive, electronics, medical devices, and aerospace.

  • Specialty Materials: Excellent for forming materials that require preheating to achieve optimal mechanical properties.
