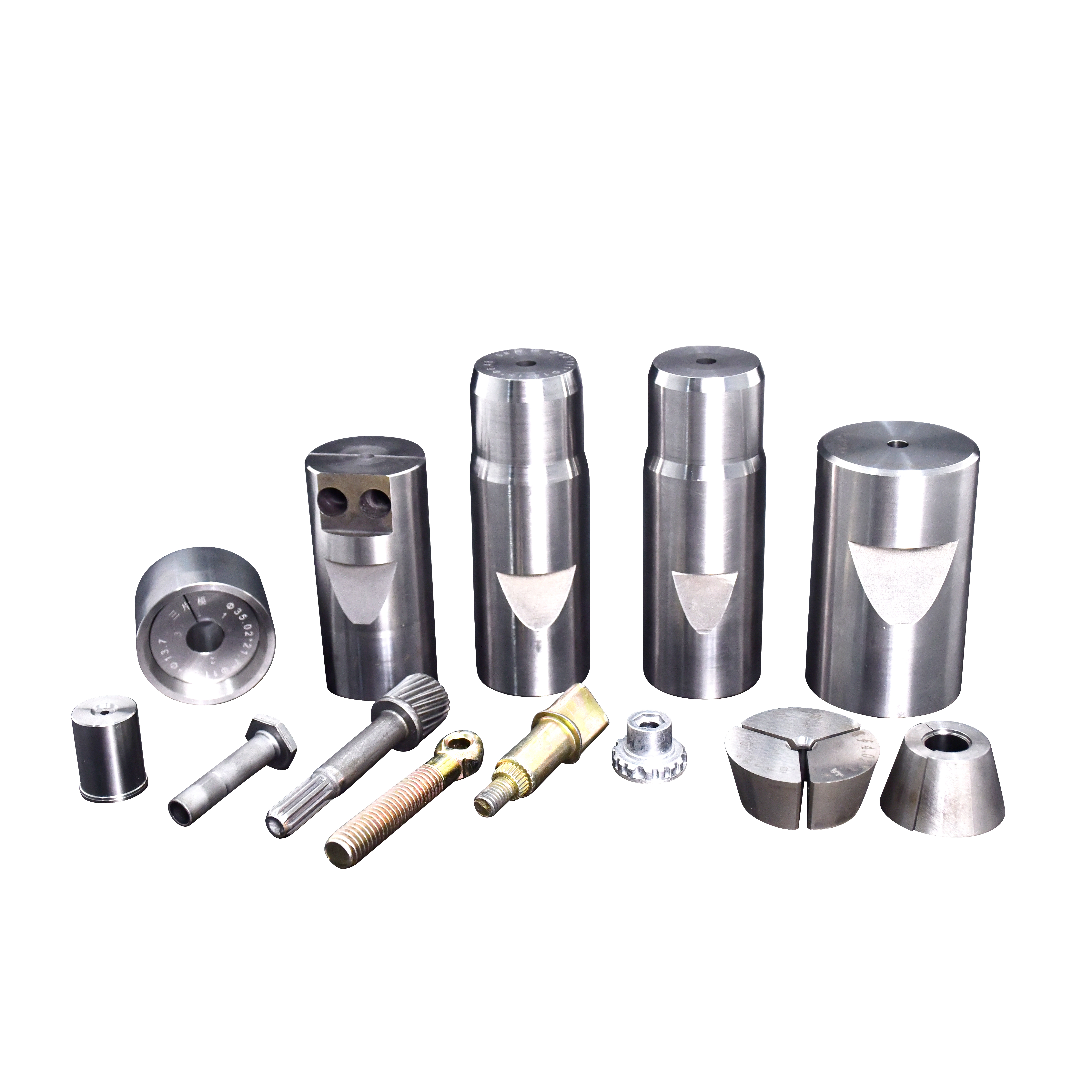

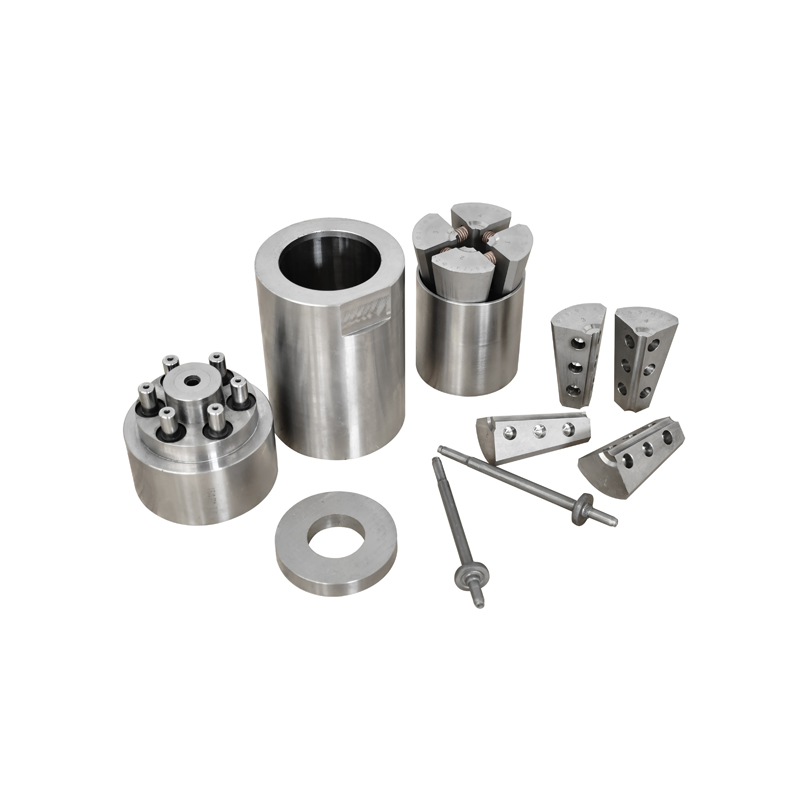

Customized hot forging dies are specialized tools designed for the hot forging process, which involves shaping metal by deforming it in a plastic state under high temperature and pressure. These dies are tailored to meet specific design requirements and performance criteria for parts that cannot be efficiently or effectively produced using standard tooling.
库存： 0
Inquire
Add to Basket
| Mode | Unit | K.505 | K-506 | KD-506 | KD-508 | KD-510 | KD-513 | KD-516 | KD-520 | KD525 |
| Forging station | No. | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Forging force | Kgf | 46000 | 55000 | 55000 | 80500 | 125000 | 172000 | 295000 | 435000 | 650000 |
| Max.cut-off dia | mm | 06 | 08 | 08 | 010 | 012 | 016 | 023 | 025 | 032 |
| Max.cut-of length | mm | 80 | 95 | 100 | 140 | 165 | 220 | 240 | 260 | 280 |
| Production speed | pcs/min | 240 | 200 | 220 | 200 | 200 | 120 | 95 | 80 | 65 |
| Master die ejection Blow | mm | 70 | 70 | 90 | 130 | 145 | 200 | 220 | 240 | 255 |
| Punch die ejection Blow | mm | 30 | 30 | 30 | 40 | 40 | 60 | 60 | 65 | 70 |
| Main sliding table Blow | mm | 120 | 120 | 130 | 160 | 195 | 270 | 285 | 355 | 370 |
| Overall dims.Of mian die | mm | 050*90 | 050*100 | 050*100 | 060*130 | 075*130 | 080*190 | 0108*200 | 0125*240 | 0140*250 |
| Overall dims.Of punch die | mm | 038*85 | 038*85 | 040*100 | 045*115 | 053*125 | 070*130 | 075*185 | 090*215 | 0120*270 |
| Overall dims..Of cut of die | mm | 028*35 | 028*35 | 028*45 | 040*60 | 045*60 | 070*69 | 075*100 | 075*120 | 080*130 |
| Die pitch | mm | 55 | 55 | 60 | 80 | 94 | 110 | 129 | 140 | 160 |
| Applicable bolt dia | mm | 2-5 | 3-6 | 3-6 | 3-6 | 6-10 | 8-16 | 10-22 | 12-30 | 12-31 |
| Shank lenght of blank | mm | 10-65 | 10-85 | 10-85 | 10-115 | 10-115 | 20-180 | 20-200 | 20-220 | 20-221 |
| Main engine motor | KW | 18.5 | 22 | 22 | 30 | 37 | 55 | 75 | 90 | 115 |
| Machine weight | mm | 7700 | 9900 | 9900 | 19500 | 25300 | 46000 | 66500 | 97200 | 164000 |
