3 Die 3 Blow Multi Functional Multi Station Cold Heading Machine Make M10-M12
3 Die 3 Blow Multi Functional Multi Station Cold Heading Machine Make M10-M12
3 Die 3 Blow Multi Functional Multi Station Cold Heading Machine Make M10-M12
3 Die 3 Blow Multi Functional Multi Station Cold Heading Machine Make M10-M12
3 Die 3 Blow Multi Functional Multi Station Cold Heading Machine Make M10-M12
3 Die 3 Blow Multi Functional Multi Station Cold Heading Machine Make M10-M12
3 Die 3 Blow Multi Functional Multi Station Cold Heading Machine Make M10-M12
3 Die 3 Blow Multi Functional Multi Station Cold Heading Machine Make M10-M12

Share to:

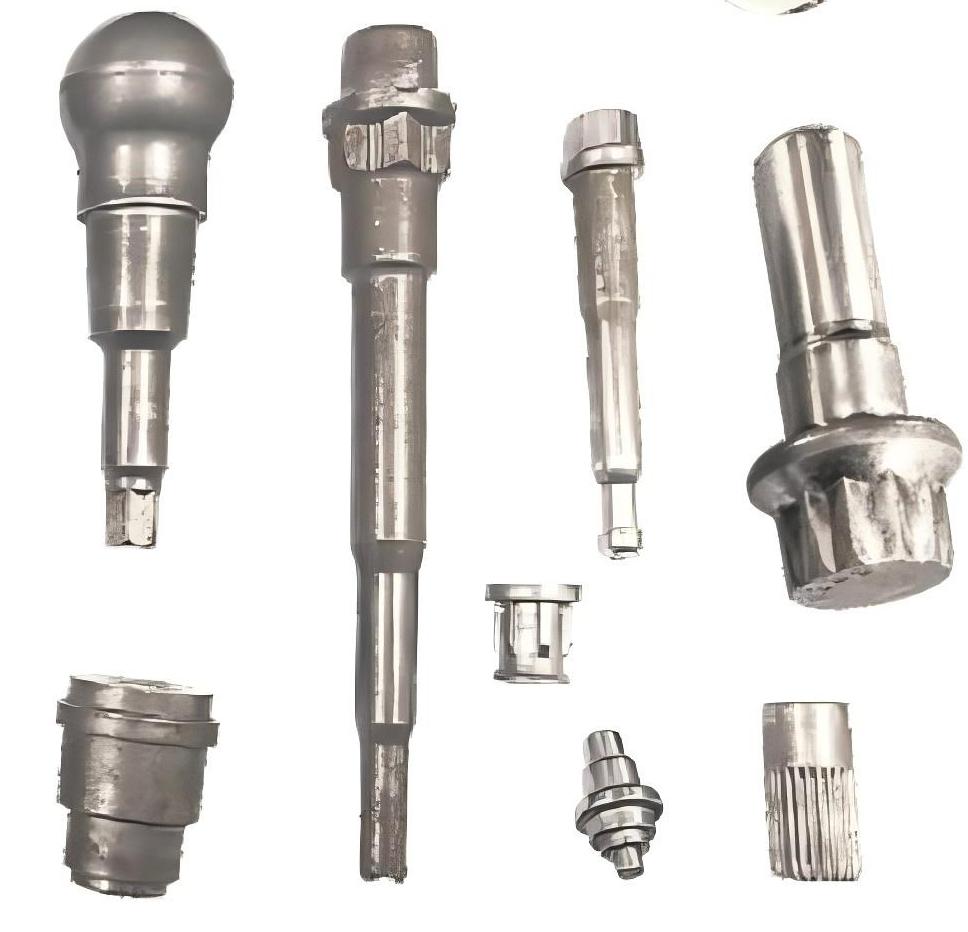

The 3 Die 3 Blow Cold Heading Machine is a highly advanced and robust piece of equipment designed for manufacturing high-precision metal components in the M10-M12 size range. This machine is ideal for producing larger fasteners, bolts, screws, and other metal parts that require more complex forming operations.
库存： 0
Inquire
Add to Basket

Specification


ModelUnitKD-306KD-308KD-310KD-316
Forging stationNo.3333
Forging forceKgf400006000090000160000
Max.cut-off diamm8101220
Max.cut-off lengthmm100140140195
Production speedpcs/min220210210100
Master die ejection strokemm90130130200
Punch die ejection strokemm30404050
Main sliding table strokemm130160160300
Overall dims. Of main diemm50*10060*13060*130100*200
Overall dims. Of punch diemm40*10045*12545*12575*185
Overall dims. Of cut of diemm28*4040*6040*6060*90
Die pitchmm608080129
Applicable bolt diamm3-84-104-610-18
Shank length of blankmm10-8510-11510-11520-180
Max flange diamm17191930
Main engine motorKW22303055
Machine weightKgs7000120001800040000
Machine dimensionmm3500*1850*20003630*2150*20803630*2150*22805700*3200*2600


Multi-station Design


  • Equipped with multiple stations (typically 5 or more), enabling progressive forming operations.

  • Each station performs a specific task, such as cutting, upsetting, extruding, piercing, or trimming, ensuring a seamless production flow.


Cold Heading Process


  • Utilizes cold heading technology to shape metal wire at room temperature without heating.

  • This process enhances material strength, surface finish, and dimensional accuracy while minimizing energy consumption.


Size Range


  • Specifically optimized for producing parts in the M10-M12 size range, making it ideal for medium to large-sized fasteners and components.
