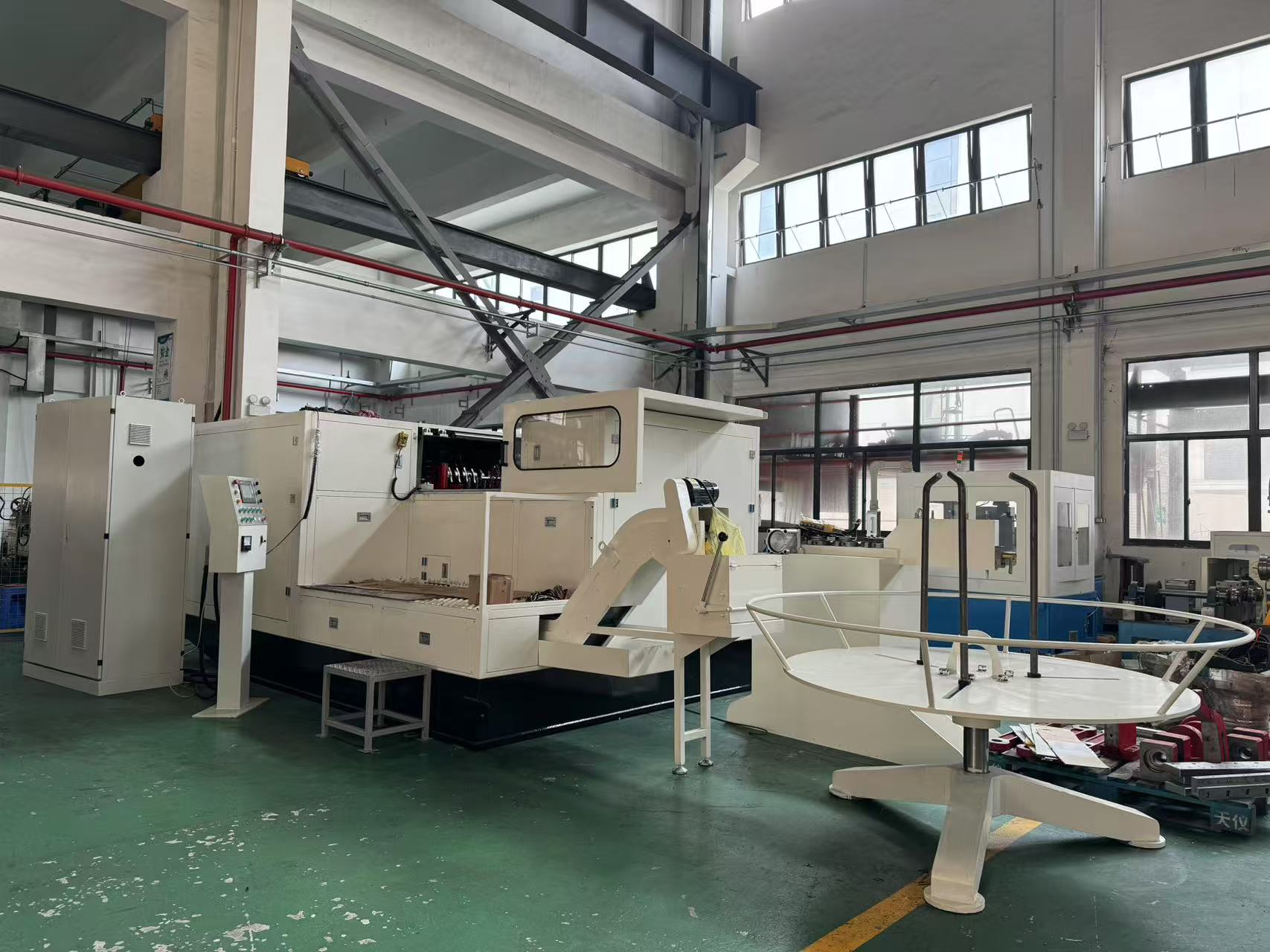

7 Die 7 Blow High Performance Multi Station Cold Heading Machine Make M8-M12

Share to:

This advanced machine is engineered for high-volume production, delivering unparalleled precision, efficiency, and versatility. It's especially suited for industries where reliability, durability, and quality are critical, such as automotive, aerospace, construction, and heavy machinery.

库存： 0

Inquire

Add to Basket

Product Description

Specification

Model	Unit	KD-706	KD-708	KD-710
Forging station	No.	7	7	7
Forging force	Kgf	63000	98000	130000
Max.cut-off dia	mm	8	12	18
Max.cut-off length	mm	100	140	135
Production speed	pcs/min	200	160	120
Master die ejection stroke	mm	90	130	100
Punch die ejection stroke	mm	30	40	35
Main sliding table stroke	mm	130	160	190
Overall dims. Of main die	mm	50*100	60*130	85*150
Overall dims. Of punch die	mm	40*100	45*115	53*125
Overall dims. Of cut of die	mm	28*45	40*60	65*75
Die pitch	mm	60	80	94
Applicable bolt dia	mm	3-6	4-8	6-10
Shank length of blank	mm	10-85	20-115	10-90
Max flange dia	mm	17	19	28
Main engine motor	KW	22	30	37
Machine weight	Kgs	11000	24000	28000
Machine dimension	mm	350022002200	440027502500	530030002200

Model	Unit	KD-715	KD-718	KD-722	KD-726
Forging station	No.	7	7	7	7
Forging force	Kgf	208000	300000	480000	750000
Max.cut-off dia	mm	20	30	35	42
Max.cut-off length	mm	220	230	240	298
Production speed	pcs/min	100	100	60	60
Master die ejection stroke	mm	200	210	220	270
Punch die ejection stroke	mm	60	60	60	70
Main sliding table stroke	mm	270	275	346	365
Overall dims. Of main die	mm	100*190	110*220	150*250	165*250
Overall dims. Of punch die	mm	75*130	75*150	100*245	120*270
Overall dims. Of cut of die	mm	80*120	84*120	128*120	139*150
Die pitch	mm	110	129	165	190
Applicable bolt dia	mm	8-19	10-24	16-30	16-32
Shank length of blank	mm	20-180	20-190	20-200	25-240
Max flange dia	mm	34	42	48	56
Main engine motor	KW	55	75	110	132
Machine weight	Kgs	63000	70000	145000	180000
Machine dimension	mm	600041003000	1450065003150	1580066503250	1750078003600

7 Die 7 Blow Configuration

The "7 Die 7 Blow" setup means this machine has seven separate dies, each responsible for a specific operation in the forming process. Each blow progressively shapes the material into its final form with exceptional detail and complexity. This configuration allows for the creation of highly intricate components with precise dimensions and superior surface finishes.

Customization Flexibility

Although primarily designed for M8-M12 sizes, the machine provides a wide range of customization possibilities by modifying tooling and adjusting configurations. This adaptability allows manufacturers to swiftly respond to evolving production demands or specific requirements with minimal disruption to operations.
