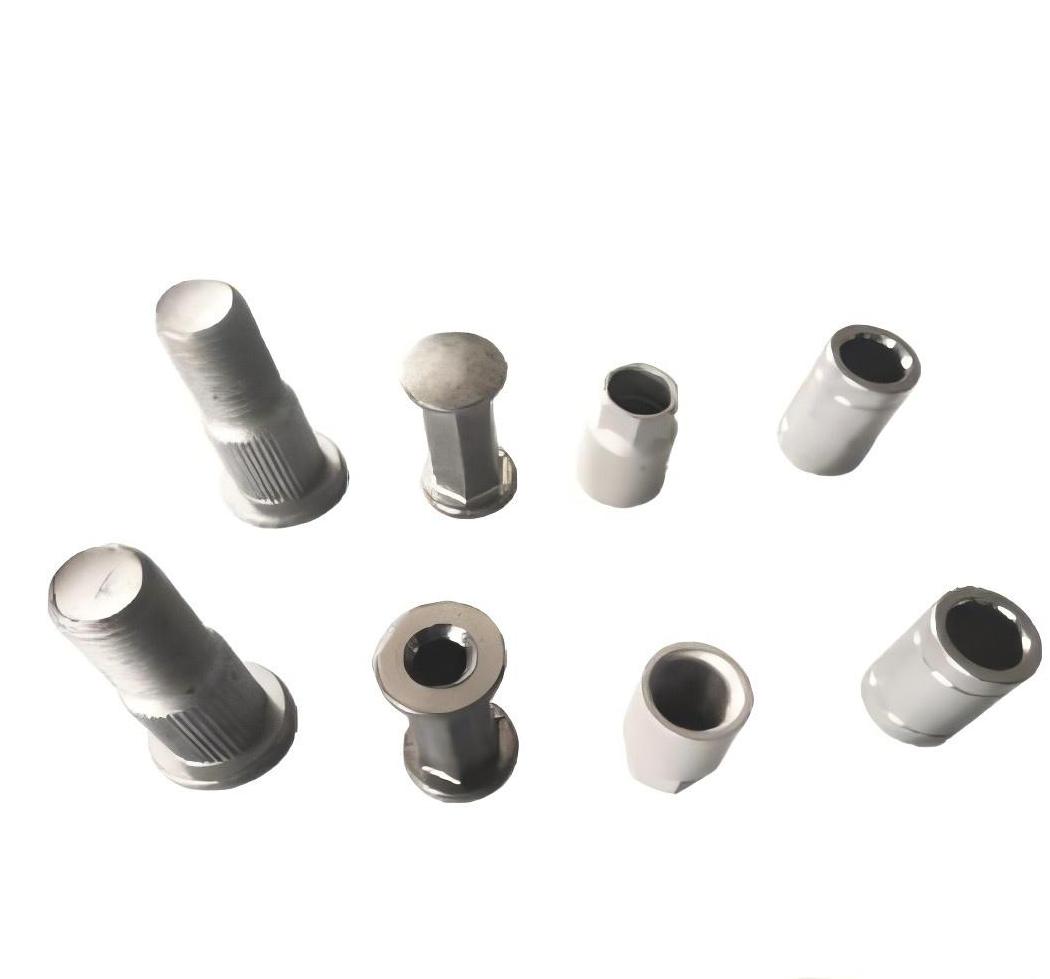

3 Die 3 Blow Multi Station Cold Forming Machine, this type of machine is ideal for high-volume production runs of small to medium-sized fasteners and components, such as bolts, screws, and rivets.
库存： 0
Inquire
Add to Basket
| Mode | Unit | K.505 | K-506 | KD-506 | KD-508 | KD-510 | KD-513 | KD-516 | KD-520 | KD525 |
| Forging station | No. | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Forging force | Kgf | 46000 | 55000 | 55000 | 80500 | 125000 | 172000 | 295000 | 435000 | 650000 |
| Max.cut-off dia | mm | 06 | 08 | 08 | 010 | 012 | 016 | 023 | 025 | 032 |
| Max.cut-of length | mm | 80 | 95 | 100 | 140 | 165 | 220 | 240 | 260 | 280 |
| Production speed | pcs/min | 240 | 200 | 220 | 200 | 200 | 120 | 95 | 80 | 65 |
| Master die ejection Blow | mm | 70 | 70 | 90 | 130 | 145 | 200 | 220 | 240 | 255 |
| Punch die ejection Blow | mm | 30 | 30 | 30 | 40 | 40 | 60 | 60 | 65 | 70 |
| Main sliding table Blow | mm | 120 | 120 | 130 | 160 | 195 | 270 | 285 | 355 | 370 |
| Overall dims.Of mian die | mm | 050*90 | 050*100 | 050*100 | 060*130 | 075*130 | 080*190 | 0108*200 | 0125*240 | 0140*250 |
| Overall dims.Of punch die | mm | 038*85 | 038*85 | 040*100 | 045*115 | 053*125 | 070*130 | 075*185 | 090*215 | 0120*270 |
| Overall dims..Of cut of die | mm | 028*35 | 028*35 | 028*45 | 040*60 | 045*60 | 070*69 | 075*100 | 075*120 | 080*130 |
| Die pitch | mm | 55 | 55 | 60 | 80 | 94 | 110 | 129 | 140 | 160 |
| Applicable bolt dia | mm | 2-5 | 3-6 | 3-6 | 3-6 | 6-10 | 8-16 | 10-22 | 12-30 | 12-31 |
| Shank lenght of blank | mm | 10-65 | 10-85 | 10-85 | 10-115 | 10-115 | 20-180 | 20-200 | 20-220 | 20-221 |
| Main engine motor | KW | 18.5 | 22 | 22 | 30 | 37 | 55 | 75 | 90 | 115 |
| Machine weight | mm | 7700 | 9900 | 9900 | 19500 | 25300 | 46000 | 66500 | 97200 | 164000 |
